Introduction
In product development, prototyping, and specialized manufacturing, the need for precise, custom-shaped adhesive components is common. A frequent request we encounter is the need for custom rectangular shapes cut from double-sided VHB (Very High Bond) tape in small, multi-size batches—such as 30 pieces each of four different dimensions. This requirement sits at the intersection of high-performance bonding and flexible, low-volume fabrication. Standard rolls or pre-cut squares often won’t suffice for specific assembly channels, jigs, or layered designs. This article explores the dedicated small-batch, multi-size custom die-cutting service designed to meet this exact need efficiently and cost-effectively.
The Core Challenge: Low Volumes, High Variety, Zero Compromise on Quality
Why is a request for “30 each of 4 sizes” a specific challenge? Mass production is built for volume, while hand-cutting is prone to inconsistency. The core hurdles include:
-
Tooling Cost vs. Order Value: Creating hard metal dies for each unique size can be prohibitively expensive for small quantities.
-

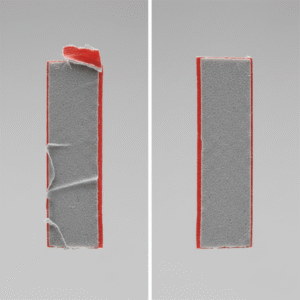

Material Integrity: VHB tape’s foam core must be cut cleanly without crushing or fraying the edges, which compromises adhesion and sealing.
-
Consistency & Efficiency: Manually cutting 120 identical rectangles (30×4) is time-consuming and often results in dimensional variances.
-
Liner Handling: Precise cutting must maintain the integrity of the protective liners for easy application later.
Our Solution: Digital Precision Die-Cutting for Custom VHB Shapes

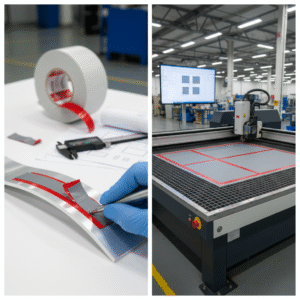

Our service directly addresses these challenges through digital flatbed die-cutting technology. This method uses a computer-controlled blade or laser to cut shapes directly from a CAD file, eliminating the need for expensive hard tooling. It’s the ideal solution for your “30 each of 4 sizes” requirement.
Key Advantages:
-
No Hard Tooling Costs: Setup is digital, making small batches economically viable.
-
Rapid Prototyping: Design changes can be implemented quickly between batches.
-
Exceptional Precision: Achieves tight tolerances (±0.25mm) for perfect rectangles every time.
-
Material Optimized: The process is calibrated for VHB tape, ensuring clean, crush-free edges that maintain the tape’s full bonding performance.
-
Kitting Efficiency: All 120 pieces (4 sizes x 30) can be organized, labeled, and delivered as a single kit, ready for your production line.
The Process: From Your Inquiry to Delivery
-
Specification & Quote: You provide the exact dimensions (length, width) for each of the four rectangles, the VHB tape type/thickness (e.g., 3M VHB 4910, 0.5mm), and quantity (30 per size). We provide a prompt, all-inclusive quote.
-
Digital File Creation & Approval: Our engineering team creates a optimized cutting layout (nesting) to minimize waste. A simple diagram is sent for your approval.
-
Precision Die-Cutting: Using approved files, the shapes are kiss-cut through the tape and adhesive layer, leaving the bottom liner perfectly intact.
-
Quality Inspection & “Kitting”: Each batch is inspected for dimensional accuracy. The 30 pieces of each size are then carefully counted, often grouped by size with separator tabs, and packaged securely.
-
Prompt Delivery: Your custom kit is shipped directly to your facility.
Conclusion & Call to Action
For projects requiring custom rectangular double-sided VHB tape in practical, low-volume quantities, a specialized digital die-cutting service is not just an option—it’s the most professional and reliable solution. It bridges the gap between prototype agility and production-quality parts, ensuring your assembly benefits from the full strength and reliability of VHB tape in the exact form factor you need.
Ready to get your custom shapes? Whether your requirement is 30 each of 4 sizes or any other small-batch, multi-shape need, our process is designed for your success. Contact our engineering team today with your specifications for a fast, precise quote and to discuss your project timeline.
